Uniview Cat6a(UTP),305m,Overseas
UV-UTP6A-300-BC23AWG-DCA-R-W
| Cable | |
| Product model | UV-UTP6A-300-BC23AWG-DCA-R-W |
| Product specification | Cat6A. U/UTP. 4×2×0.55mm |
| Test Standard | ISO/IEC11801 ED.2 ANSI/TIA-568-C.2 |
| Packing length | 305±1 m |
| Rip-cord | Yes |
| Crossing backbone | Yes |
| Ambient temperature | -20℃～75℃ |
| Conductor | |
| Material | OFC |
| AWG | 23 |
| Nom.O.D.(mm) | 0.55±0.005 mm |
| DC resistance | ≤95Ω/km |
| Insulation | |
| Material | HDPE |
| Thickness | 0.21+0.03mm |
| Diameter | 0.98±0.05 mm |

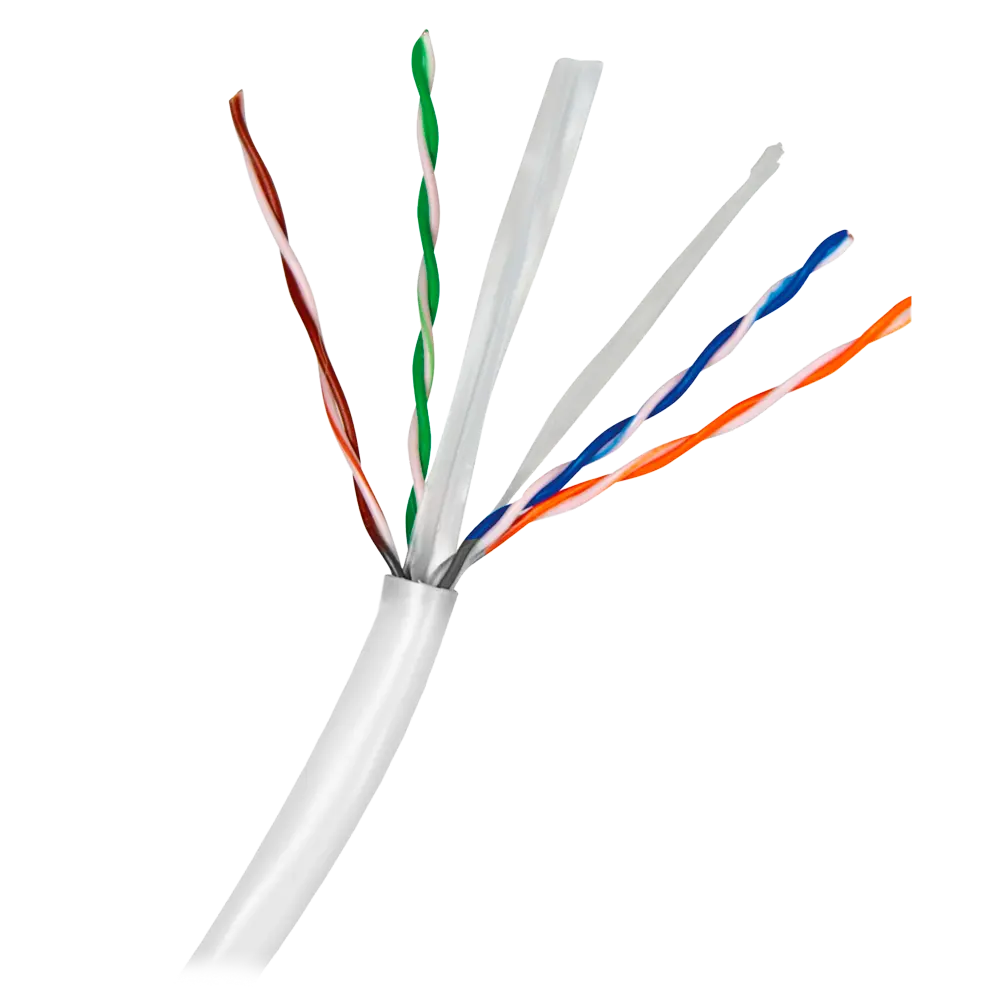

| Color | Blue/White- Blue,Green/White-Green,Orange/White-Orange,Brown/White-Brown |
| Pitch | |
| Offset pitch | ≤25mm |
| Cable pitch | ≤120mm |
| Sheath | |
| Material | LSZH (EN13501-6 DCA) |
| Fire Resistance | CPR Dca |
| External O.D. | 6.0±0.3 mm |
| Thickness | 0.55±0.15 mm |
| Color | White |
| Tensile strength | >10 Mpa |
| Surface Printing | |
| Letter height | 3.0±0.3 mm |
| Print error / Space | 1±0.005 m |
| Color | Black |
| Packing | |

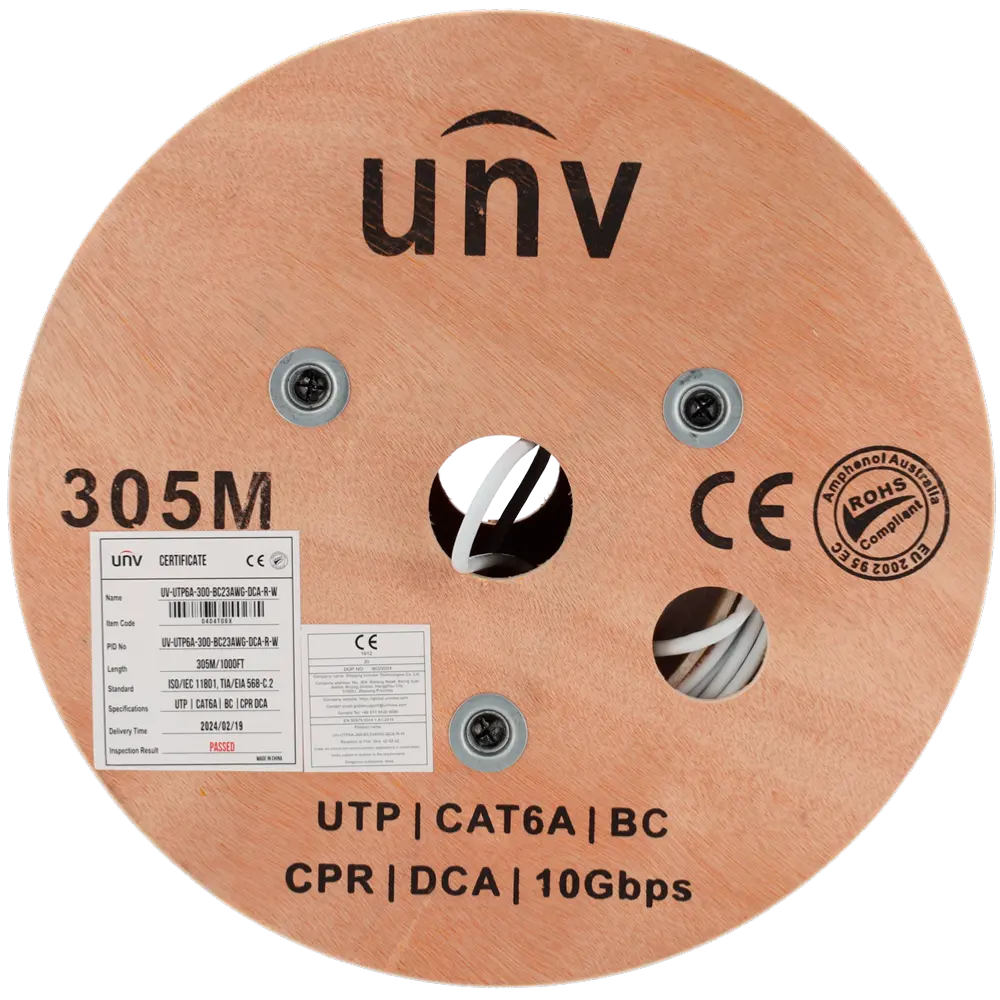

| Packing | Reel |
| Once packing dimension | 380mm*200mm*200mm |
