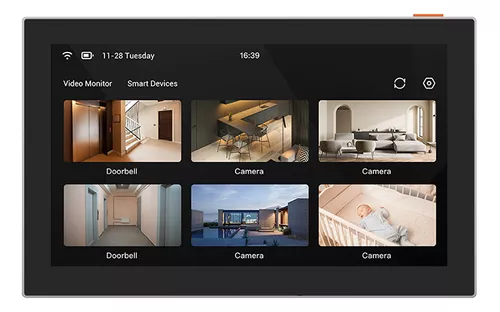

EZVIZ Smart Screen
SD7
Specifications
| Specifications | |
|---|---|
| Model | CS-SD7-R100-1WTC |
| Screen | |
| Screen size | 6.97 inch |
| Resolution | 1024 × 600 |
| Touch Screen | Supports |
| Screen Type | IPS Full Screen |
| Battery | |
| Battery Capacity | 4600 mAh |
| Interface | |
| Audio Input | Built-in high-sensitivity microphone |
| Audio Output | Built-in high-power speaker |
| Button | One-switch button |
| Connectivity | |
| Maximum Access Pixels | Up to 30 EZVIZ Devices (Supports more devices with future OTA upgrade) |
| Connected Device | 4K (Playback supports 5MP maximum) |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| General Function | Live View, Video Playback, Cloud Video Encryption |
| Wireless Parameters | |
| Wireless Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Safety | 64 / 128-bit WEP,WPA / WPA2, WPA-PSK / WPA2-PSK, WPS |
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps |
| General Specification | |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | less than 95% (No condensation) |
| Product Size | 180.3 × 111.6 × 15.6 mm (7.10 × 4.39 × 0.61 inch) |
| In the box | |
| In the box | - SD7 Smart Screen |
| - Type-C Cable | |
| - Wall Bracket | |
| - Installation Sticker | |
| - Double-sided Sticker | |
| - Screw Kit | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE / WEEE / RoHS / REACH |
