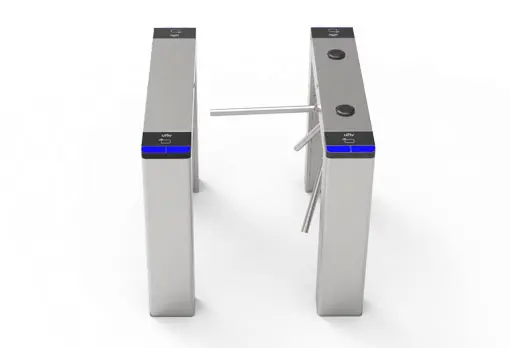

Uniview Outdoor Tripod Turnstile(Right Machine)
OFG5311-R-C
• Pedestrian-only access.
• All-round security design
• Automatic door opening for unobstructed access in case of power failure.
• Electric leakage protection for pedestrian safety.
• LED indicates the passing direction and passing status, preventing reverse access.
• Highly reliable hardware design
• 304brushed stainless steel, Pedestals of 1.0mm thick on the side and 1.2mm thick on the top, sturdy and reliable, simple and elegant.
• Solenoid valve unlocking design provides long lifetime, high reliability, and fast door opening.
• Intelligent behavior detection and access control
• Anti-rush: Remains closed unless an opening signal is received.
• Anti-impact: Able to withstand illegal external impacts for controller protection.
• Automatic reset: Automatically cancels the passing permission if a person does not pass through within the valid passing duration.
• Powerful control center
• STC CPU chip ensures long lifetime and high stability.
• MCBF 3 million times.
• Complete application solution
• With smart terminals connected, multiple authentication modes are available, such as password and card.
| OFG5311-R-C | OFG5311-N-C | |
| Hardware Specification | ||
| Lane width | 550mm | |
| Barrier material | Stainless steel round rod | |
| Dimensions (L×W×H) | 1200mm*220mm*980mm | |
| Pedestal material | 1.0mm thick on the side, 1.2mm thick on the top | |
| Power supply | AC100-240V, 50Hz to 60Hz | None |
| IO | IO*1 | None |
| Indicator color | Blue | None |
| Physical | ||
| Weight | 45KG (empty pedestal: 30KG) | |
| Specification index | ||
| Throughput | 20 to 30 persons per minute | |
| Operating environment | Operating humidity:5% to 80%；Operating humidity:20°C to +60°C (temperature control module required) | |
| Power consumption | 40W | None |
| MCBF | 3 million times | |
| Fire alarm linkage | Auto fall after power failure, manual lift after power on, auto reset after impacts |
