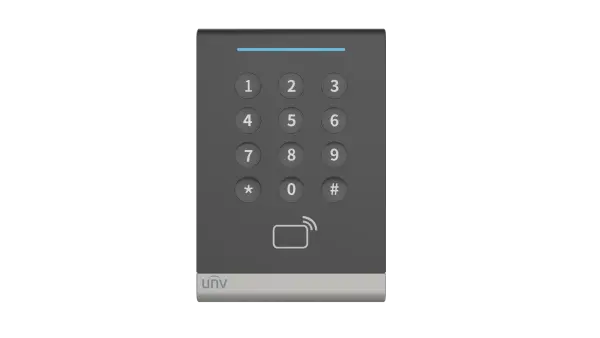

Uniview Wall Mounted Mifare Keyboard Card Reader
OEC-R3H-MK
• Supports Wiegand/RS-485 data output.
• Built-in buzzer.
• Supports indoor and outdoor application.
• Stable, sensitive, and responsive.
• Supports ISO 14443-A and ISO 14443-B protocols.
| Hardware Specification | |
| Operating Frequency | 13.56MHz |
| Interface | Wiegand 26/34, RS485 |
| Material | PC |
| Dimensions (L x W x H) | 129*88*21mm |
| Weight | 145g |
| Mount Method | 115*73mm junction box, 86*86mm junction box |
| Operating Temperature | -30°C to 65°C |
| Operating Humidity | 10% to 90% |
| Storage Temperature | -40°C to 65°C |
| Indicator | Steady blue: Normal operation; Steady green for 1s: Card authentication succeeded; Steady red for 1s: Card authentication failed |
| Power Consumption | 0.864W |
| Operating Voltage | DC 12V ± 25% |
| Operating Current | 72mA |
| Reading Distance | IC card: max. 5cm |
| Authentication Mode | Card, password |
| Protection Level | IP65 |
| Basic Business | |
| Reading Time | < 1s |
| Card Type | Mifare card |
