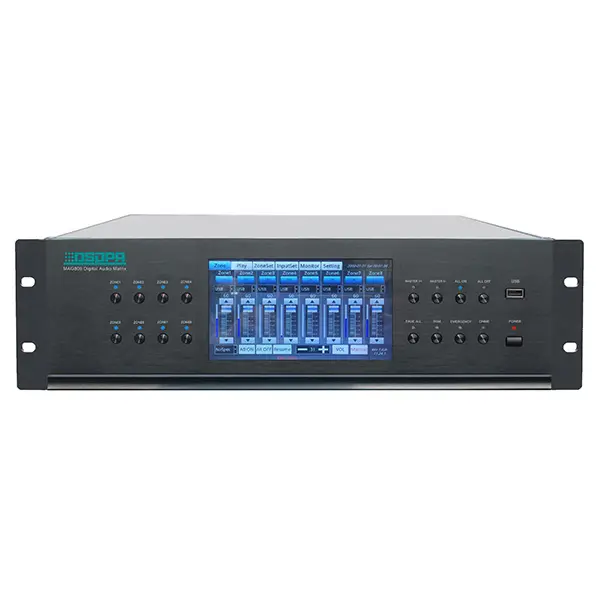

DSPPA 8x8 Digital Audio Matrix PA System
MAG808
● 7” touch screen, built-in control software, integrated with audio matrix, zones, timing, voice alarm, etc.
● 8 channel balanced audio inputs, 8 channel balanced audio outputs, each channel with individual EQ control
● Each zone support remote panel control, including audio selection, audio input and volume control
● Support 4 remote paging microphone, 2 local Mic with phantom power supply
● Support MP3 playing (built-in audio or external USB), FM. Built-in 4G memory sticker, can extend to 32G
Model | MAG808 |
Power supply | AC110V orAC220V/50Hz DC24V |
Input sensitivity of MIC1 & MIC 2 | 10mV |
Input sensitivity of lines 1-8 | 250mV |
Output voltage of lines 1-8 | 1V |
Input sensitivity of EMC | 250mV |
MIC I/O frequency response (±3dB) | 80Hz～10kHz (±3dB) |
Line I/O frequency response (±3dB) | 20Hz～20kHz (±3dB) |
Radio frequency band | 86-108 MHz |
Max. output noise | <3mV |
Output distortion (@1kHz) | <1% 1KHz |
Machine size | 484mm×375mm×132mm (1PC) |
Packing size | 540mm×510mm×195mm (1PC) |
Net weight | 10Kg |
Gross weight | 13Kg (1PC) |
