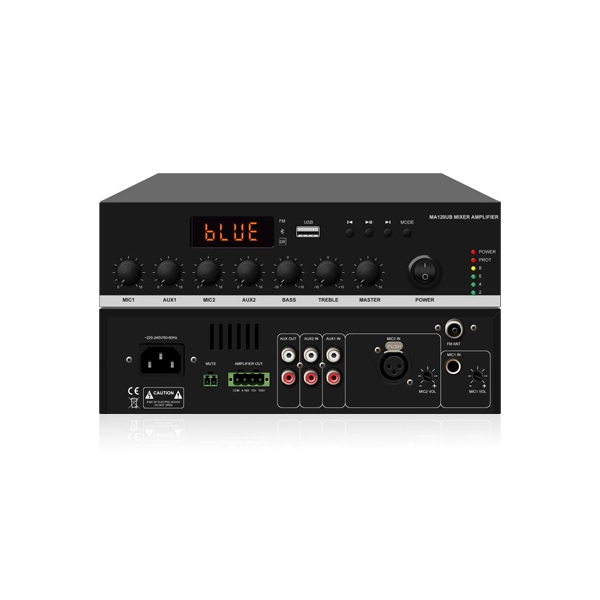

DSPPA 120W Mini Mixer Amplifier
MA120UB
● With 2 MIC IN,2 AUX IN, FM input, Bluetooth input, and USB input.
● With 1 short circuit mute control.
● With microphone mute function for easy insertion of priority broadcasting.
● With 100V/70V constant voltage output and 4-16Ω constant resistance output.
Model | MA120UB |
Rated Power | 120W |
Output Interface | Barrier Terminal Block |
AUX IN Sensitivity | 350MV |
MIC IN Sensitivity | 9MV |
S/N Radio | ≥75dB |
Tone Control | Treble:±9dB Bass:±9dB |
Frequency Response | 80Hz-15kHz(±1dB) |
Distortion | ＜0.1%@1KHz |
Operating Power | AC220-240V/50Hz |
Protection | Load short circuit, power on/off |
Power Consumption | 140W |
Machine Dimensions | (L x W x H)250x230x72 |
Package Dimensions | (L x W x H)305x345x130 |
Gross Weight | 3.5kg |
Net Weight | 3.1kg |
