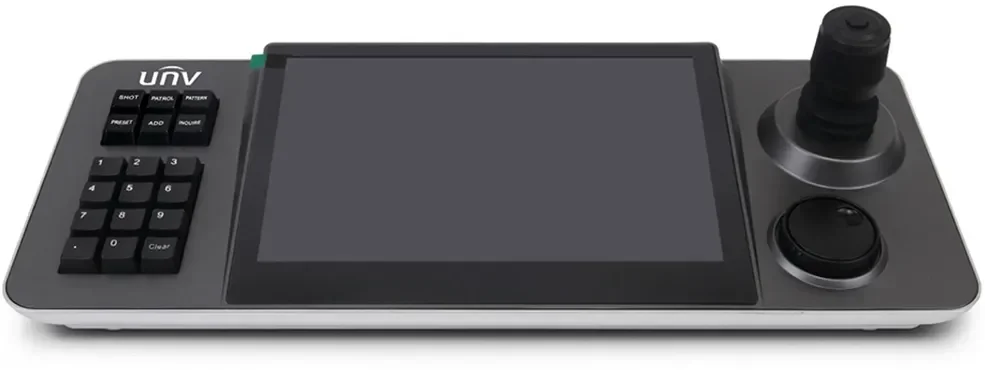

Uniview Network Control Keyboard
KB-2100
* 10.2” capacitive touch screen, 2-point touch control.
* Simultaneous output of 1920*1080P@60Hz videos.
* Supports connecting a total of 500 channels of IPC/NVR devices.
* Supports searching and adding IPCs and NVRs by one click.
* H.264/H.265.
* Capable of decoding 1*4K, 4*1080P, or 8*720P videos.
* 4D joystick allows users to perform pan, tilt, focus, and zoom operations on a PTZ camera.
* Supports connecting VMS, VM, decoder and other devices to control video walls (including window opening, roaming, split screen, sequence, scene, screen on/off, etc.).
* Enable/disable key tone.
* Scheduled restart.
* System upgrade via a USB flash drive.
Decoding | Description |
Decoding Format | H.264, H.265 |
Decoding Capability | 1‑ch 3840 x 2160@25 Hz, 4‑ch 1080@30 Hz, 8‑ch 720P@30 Hz |
Screen Control | Description |
Split Screen | 1/4/9 (supports simultaneous display of up to 8 channels) |
Output | Description |
Video Output Resolution | 1920 x 1080@60 Hz |
Output Interface | Description |
HDMI Output | 1 x HDMI output interface |
Audio Output | 1 x standard 3.5mm audio jack (reserved) |
Other Interfaces | Description |
Serial Port | 1 x RS232 (DB9, reserved) 1 x RS485 (half‑duplex, reserved) |
Network Interface | 1 x 10M/100M adaptive Ethernet interface (RJ45) |
USB | 1 x USB interface (used to upgrade device and connect mouse) |
Power | DC 12 V power interface |
General | Description |
Screen Size | 10.2 inches |
Joystick | four‑dimensional joystick |
Max Power Consumption (W) | ＜15 |
Product Dimensions (W x H x D) (mm) | 449.7 x 178.6 x 115.4 |
Weight (Kg) | 1.4 |
Operating Temperature | ‑10 ～ 40°C |
Operating Humidity | 10% ～ 90% (No‑condensing) |
Storage Temperature | ‑40 ～ 60°C |
