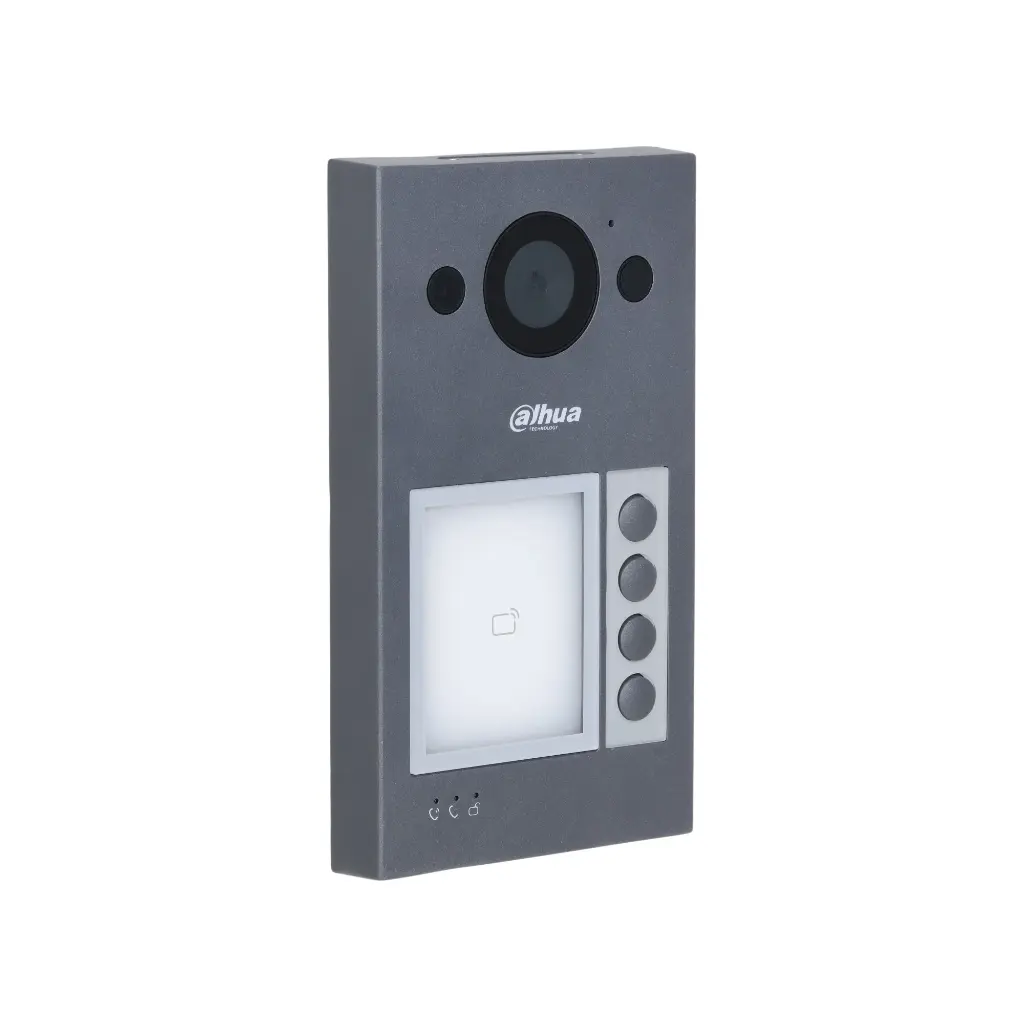

Dahua IP & Wi-Fi Villa Door Station
DHI-VTO3311Q-WP
Full Metal Casing Design
Customizable Number of Buttons
Wi-Fi Connection
1/2.8-inch 2-MP HD CMOS Camera
IR Illumination and Auto WDR
IK08 & IP65
Unlock via IC Card
PoE Power Supply
Specifications
System | |
Main Processor | Embedded Processor |
Button Type | Mechanical |
Interoperability | ONVIF; CGI |
Network Protocol | RTSP; DNS; P2P; UPnP; RTP; RTMP; SIP; SSH; HTTP/HTTPS; ONVIF |
Basic | |
Camera | 1/2.8" CMOS 2-MP HD camera |
Field of View | H: 125°; V: 65°; D: 139° |
WDR | 120 dB |
Noise Reduction | 3D NR; 2D NR |
Video Compression | H.264; H.265 |
Video Resolution | Main stream: 720p, WVGA, D1, and CIF; Sub stream: 1080p, WVGA, D1, QVGA, and CIF |
Video Frame Rate | PAL: 25 fps NTSC: 30 fps |
Video Bit Rate | 768 kbps–8 Mbps |
Light Compensation | Auto IR |
Day/Night | Auto (ICR)/Color/B/W; Color/B/W |
Audio Compression | G.711a; G.711u; PCM |
Audio Input | 1 |
Audio Output | Built-in speaker |
Audio Mode | Two-way audio |
Audio Enhancement | Echo suppression/digital noise reduction; Echo suppression; Digital noise reduction |
Audio Bit Rate | 16 kHz, 16 bit |
Function | |
Communication Mode | Full digital |
Unlock Mode | Card; app; indoor monitor |
Card Type | IC card |
Auto Snapshot | Yes (SD card is inserted in the indoor monitor or door station) |
Leave Videos | Yes (SD card inserted in VTH/VTO is needed) |
Web Configuration | Yes |
Wi-Fi | Yes |
Wireless Standard | IEEE 802.11b; IEEE 802.11g; IEEE 802.11n |
Wireless Frequency Range | 2.4 GHz |
Storage | Micro SD card (max. 256 GB) |
Performance | |
Card Reading Distance | 0 cm–3.5 cm (0"–1.38") |
Issue Card Locally | Yes |
Casing | Alluminum alloy |
Port | |
RS-485 | 1 |
Alarm Input | 1 |
Alarm Output | 1 |
Power Output | 1 |
Exit Button | 1 |
Door Status Detection | 1 |
Lock Control | 1 |
Network Port | 1 × RJ-45 10/100 Mbps Ethernet port |
Alarm | |
Tamper Alarm | Yes |
General | |
Appearance color | Grey |
Power Supply | 12 VDC, 1 A; Standard PoE |
Power Adapter | Optional |
Installation | Surface Mount |
Certifications | CE; FCC |
Accessory | Included: Alarm power ribbon cable, rain cover |
Product Dimensions | 188.1 mm × 107.2 mm × 30 mm (7.41" × 4.22" × 1.18") |
Protection | IP65 IK08 |
Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Operating Humidity | 10%–90% (RH), non-condensing |
Operating Altitude | 0 m–3,000 m (0 ft–9,842.51 ft) |
Power Consumption | ≤ 3 W (standby), ≤ 6 W (working) |
Gross Weight | 0.81 kg (1.79 lb) |
Net Weight | 0.55 kg (1.21 lb) |
