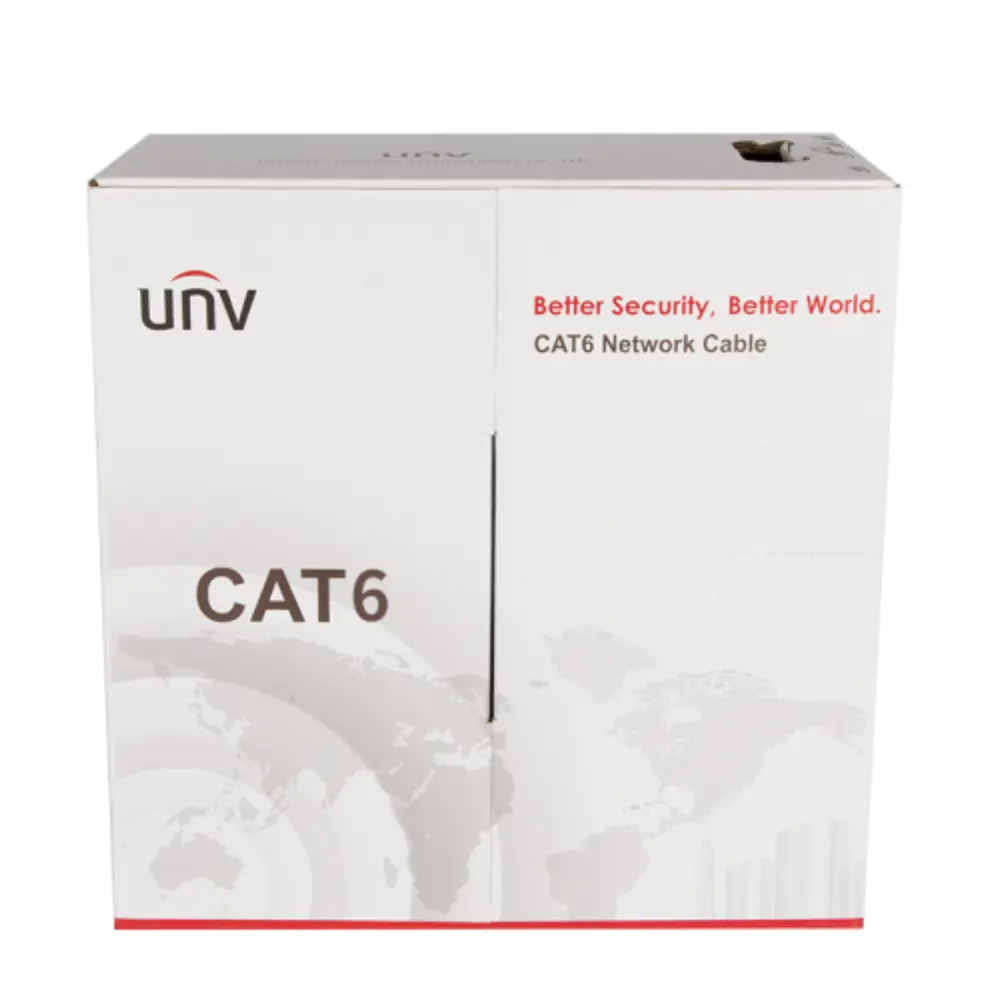

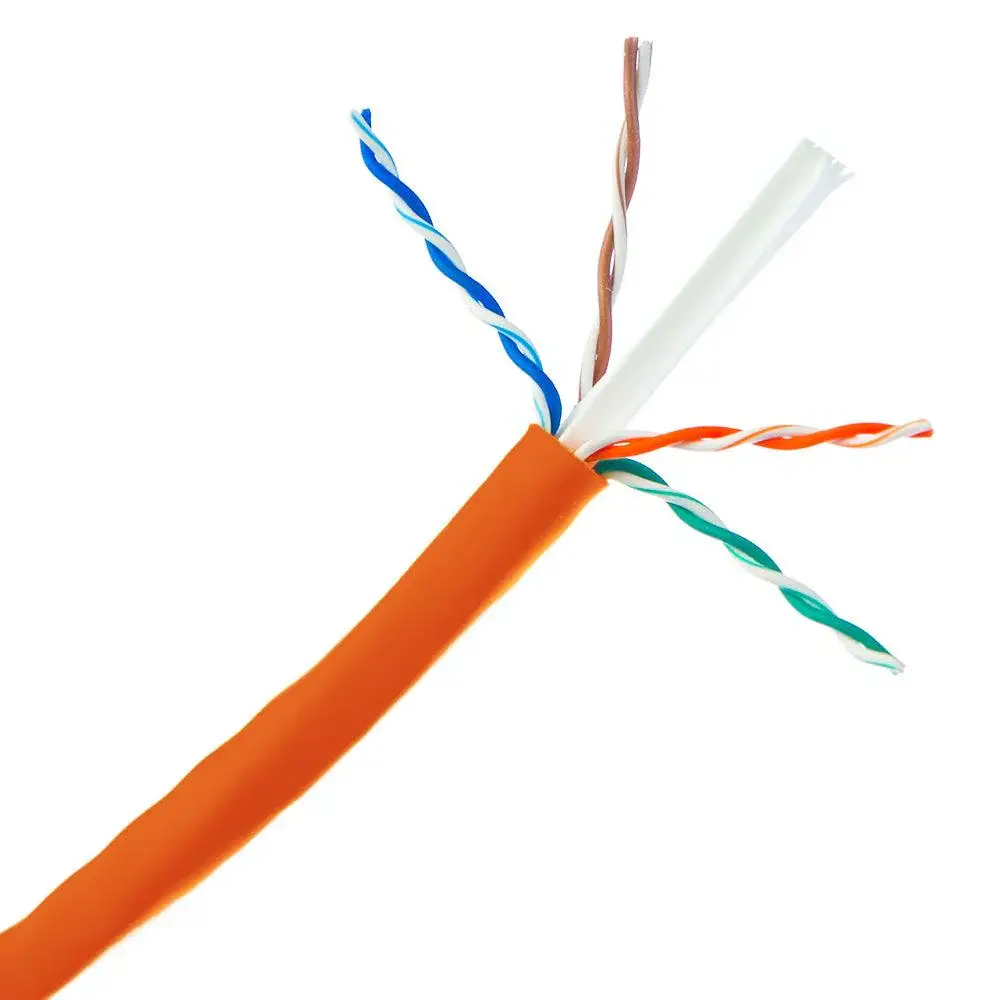

Uniview Network Cable 305m Cat6 UTP - Orange
| CAB-LC3100B-E2-IN | |
| Cable | |
| Product model | CAB-LC3100B-E2-IN |
| Product specification | HSYV-6 4×2×0.50 |
| Test Standard | Fluke Test 90m |
| Packing length | 305±1 m |
| Rip-cord | Yes |
| Seperator | Yes |
| Ambient temperature | -20℃～75℃ |
| Conductor | |
| Material | Solid-Bare Copper |
| AWG | 24 |
| Nom.O.D.(mm) | 0.50±0.01 mm |
| DC resistance | ≤95 Ω/km |
| Insulation | |
| Material | HDPE |
| Diameter | 0.90±0.05 mm |
| Color | Blue/White- Blue,Green/White-Green,Orange/White-Orange,Brown/White-Brown |
| Sheath | |
| Material | PVC |
| External O.D. | 5.6±0.3 mm |
| Thickness | 0.55±0.1 mm |
| Color | Orange |
| Tensile strength | >13.8 Mpa |
| Surface Printing | |
| Letter height | 3.0±0.3 mm |
| Print error / Space | 1±0.005 m |
| Color | Black |
| Packing | |
| Packing | Pallet |
| Once packing dimension | 420mm*205mm*420mm |
